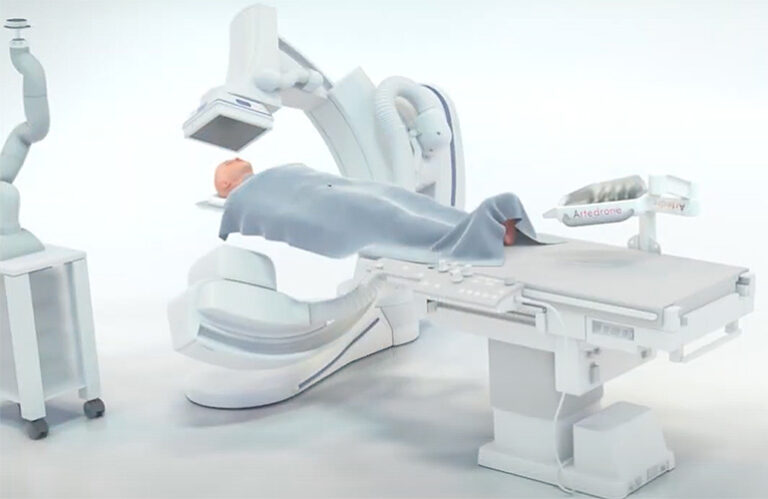

Artedrone designed its Sasha mechanical thrombectomy system to make use of magnets and robotics to assist the catheter retrieve a stroke affected person’s blood clot. | Supply: Artedrone
Increasing care to stroke victims is one in all medtech’s greatest alternatives, and startup Artedrone is creating a microrobot system that may navigate to blood clots for autonomous mechanical thrombectomies.
Backed by Truffle Capital, Artedrone has submitted findings from its preclinical program for publication in an unnamed analysis journal because it continues testing to lock within the Sasha system’s design for its first-in-human process someday in 2027.
The Paris-based startup is making an attempt to boost a €20 million ($22.5 million U.S.) Sequence B funding spherical to finalize that preclinical work and fund the first-in-human research, with a Sequence C spherical following to finance a pivotal research by 2028.
“An concept behind the corporate is to democratize these very advanced procedures,” Artedrone CEO Liane Teplitsky, former head of worldwide robotics at Zimmer Biomet, advised Medical Design & Outsourcing.
Earlier than the process, CT or MRI scans would construct a digital twin of the affected person’s vasculature to map a path to the blood clot. | Supply: Artedrone
Sasha system creates medical digital twin
The Sasha system is designed to make use of MRI or CT imaging — the identical scans that may find and ensure a blood clot in a stroke sufferer — to create a digital twin of the mind vasculature to chart a path for the catheter to achieve and take away the clot.
At a cath lab or interventional neuroradiology lab, an interventionist would insert the catheter within the affected person’s groin and as much as their carotid artery.
“That’s the bottom camp,” Teplitsky mentioned. “After that, you push a button and the robotic is set free. It’s propelled by the blood move — it’s not energetic in that approach — till there’s a bifurcation, like a fork within the street.”
“We’ve already pre-planned, we all know precisely the place we need to go, and that’s the place our exterior magnet is available in,” she added. “It pushes or pulls the magnet [on the catheter] in the best route, after which it continues alongside that pathway as we set free a little bit bit extra line routinely to the following spot. If there’s one other bifurcation, we use the magnet once more.”
Magnets on the Sasha system’s robotic arm and catheter assist the thrombectomy system on its technique to the blood clot. | Supply: Artedrone
Artedrone makes use of magnets to deal with clots
The blood slows because the catheter nears the clot that’s blocking the vessel, at which level the magnet positions the distal finish of the catheter to seize the clot.
“It acts as suction like an aspiration catheter, however you see very totally different properties than a traditional aspiration catheter,” mentioned Teplitsky, who described it as a magnetic suction cup. “You activate the suction and we now have a suggestions loop that tells us whether or not we’re actually adhered [to the clot before] we begin pulling again.”
The road is engineered to be versatile sufficient to navigate to the clot, however robust sufficient to seize and take away it, withdrawing again into the guiding catheter and out of the affected person by the operator on the desk.
“You principally push a button and it pulls it again by means of the vasculature,” she mentioned. “[Like] an aspiration catheter, there’s all the time the chance of the clot breaking apart as you pull again, however the backside line is we’ve received the bottom camp catheter as shut as we expect we are able to get to it to have the ability to pull it again. … We now have some fairly good outcomes exhibiting that it’s very efficient.”
Teplitsky declined to reveal the system’s supplies for aggressive causes. In a press release, Artedrone mentioned the microrobot’s magnetic suction cup “displays on the similar time the suitable magnetic properties for the magnetic actuation and the suitable design to optimize the interplay with the clot.”
“The cup is linked to an progressive part with antagonist properties comparable to a excessive flexibility and a low pressure,” the corporate mentioned. “This part is linked to a multilayer construction with the suitable properties for pushing.”
The mechanical thrombectomy catheter within the Sasha system strikes with the move of blood towards a clot for seize and retrieval utilizing suction. | Supply: Artedrone
Challenges forward for Artedrone
“We need to get to Stage II stroke facilities, perhaps even cardiac care facilities the place you have got palms which might be knowledgeable in moving into the carotid, after which after that they don’t should get to that mind vasculature, which takes one other two to seven years of coaching will depend on who you discuss to and what nation you’re in,” Teplitsky mentioned.
“One of many greatest challenges and alternatives is that we all know the interventional neuroradiologist will definitely should be concerned, however our long-term play goes to be in these Stage II stroke facilities, probably with the interventional heart specialist as one of many leads,” she continued. “So, how can we work out one of the simplest ways ahead for our first in-human — which facilities we need to go to, who can we need to companion with, and what does that appear to be — and actually map that out with the risk-benefit for the sufferers?”
Locking within the system’s design, finalizing improvement and constructing documentation for regulatory overview is “a comparatively easy path at this level,” Teplitsky mentioned, with FDA 510(ok) clearance the likeliest route.
Their check tools has to this point included 3D fashions of pig and human anatomy with correct vasculature, blood pressures, viscosity, and temperature.
“I maintain speaking with my group about creating some IP round this check bench, as a result of it’s been nearly as a lot work as really the product at this level,” she mentioned. “We’ve realized some nice classes from that. Now we now have a extremely strong in vitro mannequin that interprets to the in vivo mannequin, so you may go in and really feel very assured as you progress from one to the following.”
However there are two large remaining challenges which might be widespread for medtech builders working with robotics.
Artedrone CEO Liane Teplitsky. | Supply: Artedrone
“One is guarantee that it’s actually assembly a necessity, and I really feel we’ve completed this,” she mentioned. “We all know what we’re making an attempt to do. There’s an enormous want on the market. Individuals will likely be keen to pay for it as a result of there’s this large burden and large prices related to stroke, the third-leading explanation for long-term incapacity on this planet. The second [challenge] is ease of use. … Due to the person inhabitants that we need to go to, it actually must be easy.”
The expertise might find yourself being helpful for different neurovascular procedures or in endovascular or cardiovascular functions.
“There’s positively alternative as we have a look at the entire system, not solely the catheter part, however what we’re doing round imaging, AI, catheter supply,” she mentioned. “All these totally different parts might positively be utilized to totally different locations.”
