Analog FPV system continues to be extensively used because of their low latency and affordability, however they are often stricken by numerous video points—like rolling photographs, noise strains, or interference. On this information, I’ll share tips on how to troubleshoot and repair these analog FPV video issues primarily based on finest practices and real-world expertise.
Powering VTX and Digital camera
In case your video feed turns into noisier if you throttle up, it’s possible because of electrical noise from the battery reaching your digicam or VTX. That is typically brought on by voltage fluctuations or poor filtering. Greatest Follow is to energy your FPV digicam and VTX from a BEC (regulated output) on the flight controller, in a roundabout way from the LiPo. FPV gadgets choose steady voltage to transmit clear alerts.
Add Capacitors to the ESC Energy Pads
Even with onboard filtering, further capacitors may help suppress voltage spikes and ripples, and clear up energy to the flight controller and video system.
Suggestion: Solder a low-ESR capacitor to your ESC energy pads (XT60/XT30 enter aspect). That is particularly efficient for filtering motor-induced noise. Extra information: Why You Ought to Add a Capacitor – https://oscarliang.com/capacitors-mini-quad/
If noise persists, take into account including small capacitors (e.g. 470μF) to the 5V or 12V rails, although that is hardly ever wanted.
Twist Sign and Floor Wires
Twisting your video sign and floor wires collectively helps reject electromagnetic interference. This works by making a pure protect towards noise from ESCs or BECs. Additionally, preserve video sign and energy wires away from inductors or energy provide elements on the board.
Defend the ESC from the Flight Controller

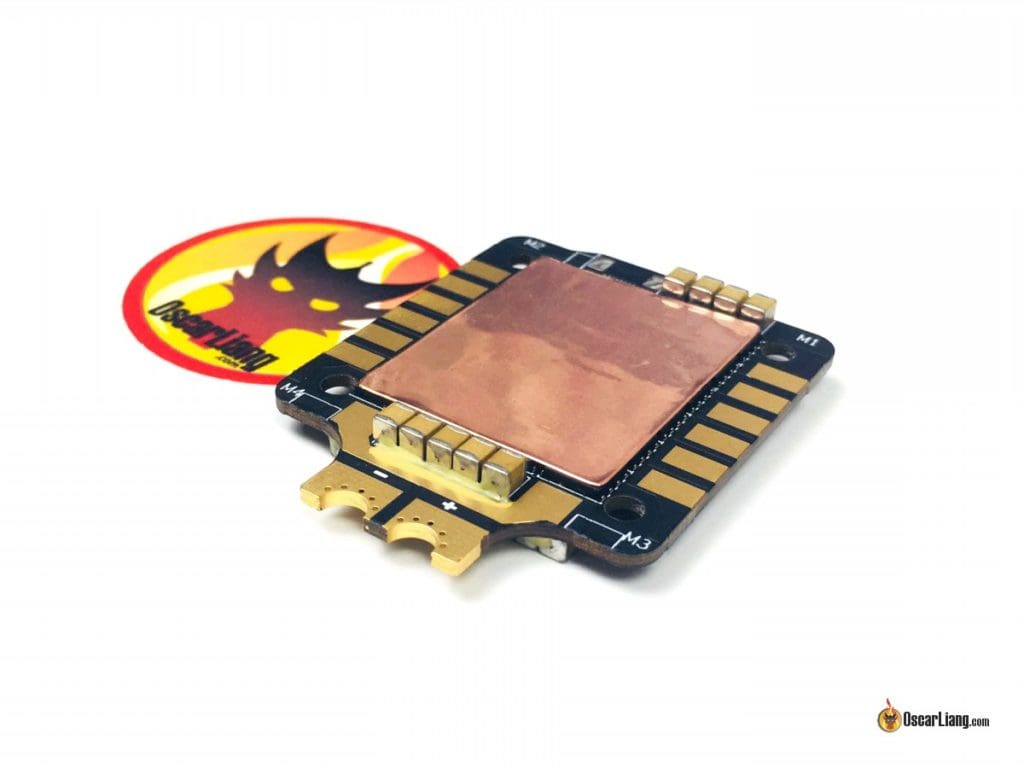

MOSFETs on ESCs can generate interference affecting your FC’s BEC. Some ESCs embody a metallic protect for that reason. If yours doesn’t, you would possibly take into account including EMI shielding materials or changing it with a shielded ESC.
Correct Grounding is Essential
Your circuit is incomplete with no strong floor connection. When you energy your digicam and VTX individually however don’t join sign floor, the sign turns into extra susceptible to energy noise.
Ideas: Join digicam and VTX grounds to the identical floor pad (or at the least pads shut collectively).
That is particularly necessary if powering the video system straight from the LiPo.
Diagnosing White Strains in Video
White horizontal strains typically point out extreme electrical noise, particularly within the digicam or VTX energy. Fixes embody:
- Including a low-ESR capacitor to the XT60 pads
- Powering the digicam from the VTX, which frequently presents higher regulated energy
- Utilizing a filtered BEC output
Diagnosing Black Strains in Video
Black flickering strains sometimes imply your VTX isn’t receiving sufficient energy. That is frequent at larger output energy ranges.
Options:
- Energy the VTX straight from the battery
- Guarantee your BEC’s present ranking is excessive sufficient
- If points persist, strive one other VTX or digicam
Bonus Tip: Test that motor screws aren’t too lengthy—they could possibly be shorting towards motor windings. Right here’s tips on how to verify: https://oscarliang.com/check-motor-screws-touching-winding/
Test Your Antennas
Not all video points are power-related—dangerous or mismatched antennas are a standard explanation for poor picture high quality.
- Guarantee each VTX and goggles have matching connectors (SMA / RP-SMA)
- Match round polarization (RHCP / LHCP)
- Strive altering video channels if there’s potential for interference
Flying With Others?
When you’re flying with a bunch and experiencing interference, be sure to’re on non-overlapping channels. Right here’s a information to choosing the perfect analog channels: https://oscarliang.com/fpv-channels/
Jello in FPV Video
In case your quad is tuned nicely and also you’re nonetheless seeing jello, it’s possible a mechanical challenge. Fashionable FPV cameras use CMOS sensors, that are extra susceptible to vibration artifacts than CCD sensors.
Test for:
- Unfastened digicam mount screws
- Unfastened or cracked digicam lens lock nuts
- Unfastened digicam sensor contained in the housing
If all else fails, strive utilizing TPU digicam mounts to dampen vibrations.
Fixing Vertical Video Rolling
Analog FPV video is made up of frames, and every body consists of many scan strains. To show every body correctly, the system makes use of a sync pulse on the finish of each body to inform the receiver when the subsequent body is coming.
If the receiver loses the sync pulse, it not is aware of the place the highest of the display screen is—leading to your picture rolling vertically. Even when the picture knowledge is generally tremendous, a lacking or inconsistent sync pulse can throw off your complete show.
To repair this challenge, some superior video receivers use sync pulse reconstruction. Modules just like the ImmersionRC Rapidfire and TBS Fusion, have sync pulse reconstruction perform when sync pulse is misplaced. This retains your picture from rolling, even with a weak or noisy sign.
Need assistance to resolve which module to purchase? Right here’s my Fusion vs Rapidfire Comparability: https://oscarliang.com/rapidfire-fusion/
Fixing Video Scrolling Sideways
Some superior video receiver modules have sync pulse reconstruction funcitons as mentioned above, this addresses the video rolling points when you’ve got weak or noisy sign the place sync pulse is misplaced.
Nevertheless, this function assumes the digicam is sending sync pulses that conform to straightforward NTSC or PAL timing. Sadly, some low high quality FPV cameras don’t comply with these requirements intently, they usually would possibly generate sync pulses which might be inconsistent or exterior the anticipated timing vary. This confuses the receiver module’s sync reconstruction algorithm. As a substitute of serving to, it finally ends up injecting faux sync pulses on the flawed time—resulting in the sideways scrolling challenge.
To verify if that is the problem you’re having, strive swapping to a different analog digicam (totally different model or mannequin). If the problem goes away, it’s possible your authentic digicam is producing unstable sync pulses.
When you’ve got Rapidfire or TBS Fusion, strive disabling sync pulse reconstruction function, or switching to a unique mode. These are normally listed beneath totally different variety or video modes:
- Rapidfire: Mode 1 / 2 / Legacy
- Skyzone: Variety Combine 1, 2, or 3
Disabling sync reconstruction could repair the scrolling challenge—but it surely removes a serious function that improves analog video in weak sign situations. Chances are you’ll now expertise flickering or tearing when sign high quality drops. To essentially tackle the problem it may be price getting a greater digicam as a substitute.
Last Ideas
Analog FPV methods are nonetheless standard, however they require correct setup and upkeep for the perfect efficiency. Begin with clear energy, correct grounding, and appropriate antennas, then transfer on to digicam high quality and receiver settings.
With some easy diagnostics and fixes, you may vastly enhance your analog video expertise—and remove many of the irritating picture artifacts that analog pilots encounter.
