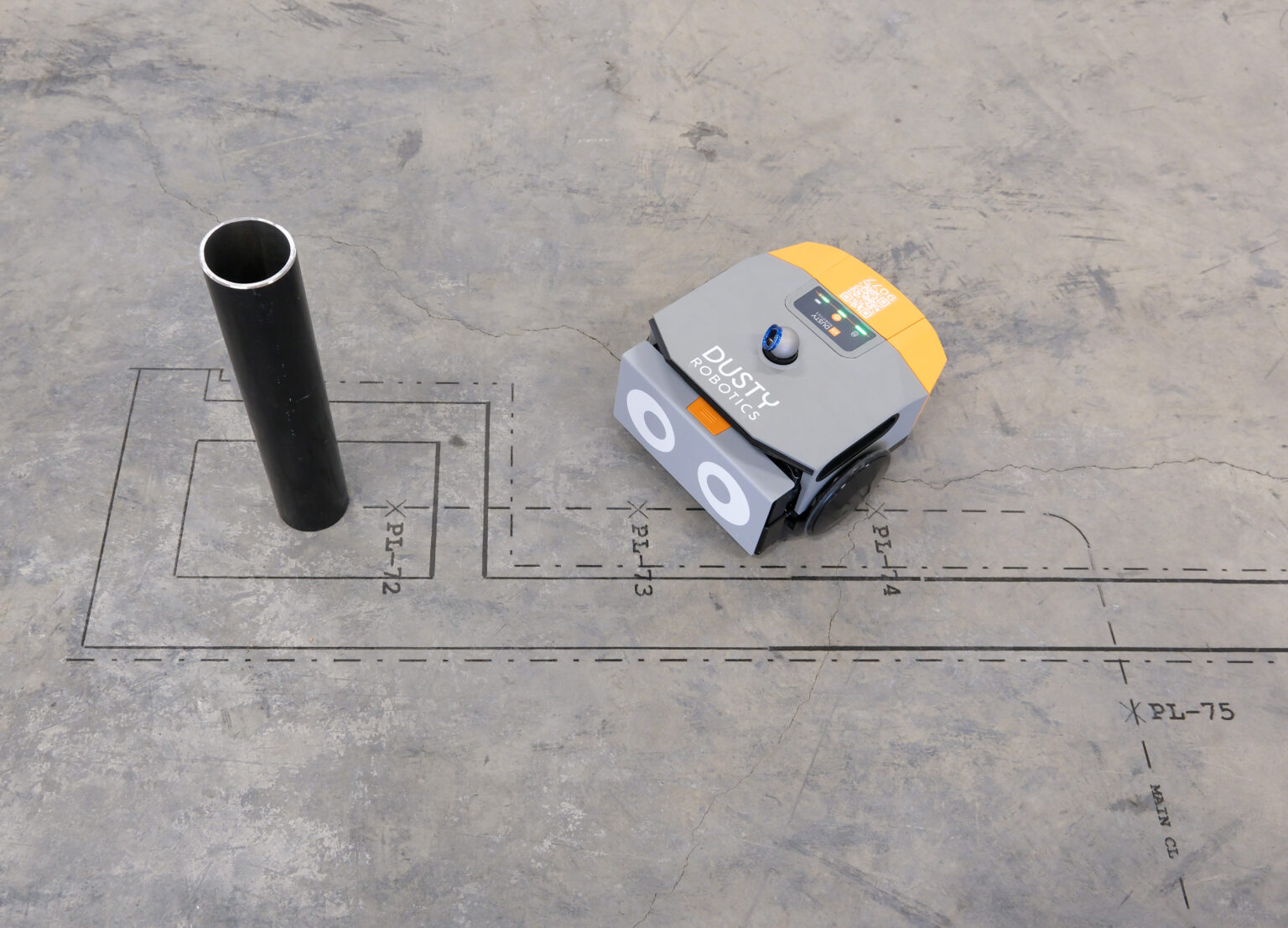

Efficiency Movement Units’ N-series movement controller-drives assist the Dusty AMR keep away from obstacles, ledges, and different risks. | Supply: Dusty Robotics
The development business is beneath strain. Labor shortages, rising materials prices, and demand for velocity and precision are pushing builders to hunt automated options that enhance effectivity, security, and sustainability. Dusty Robotics hopes to make use of its expertise to alter this.
Typically, plans are marked in bodily areas utilizing old style means: Relying on the location, personnel may use a complete station (a surveying instrument integrating a number of measurement instruments) or maybe simply tape measures and chalk strains to mark the place issues go. The method largely unchanged from these used centuries in the past.
Big stacks of blueprint exhausting copies detailing every ground and system are slowly yielding to digital communications, however data remains to be manually communicated onsite, defined Mike Thompson, principal engineer at Dusty Robotics. So too usually, a constructing’s 3D mannequin isn’t what will get constructed. As numerous trades lay out their plans, errors and outdated data usually result in incorrect layouts, rework, and delays.
Dusty Robotics designs the FieldPrinter 2

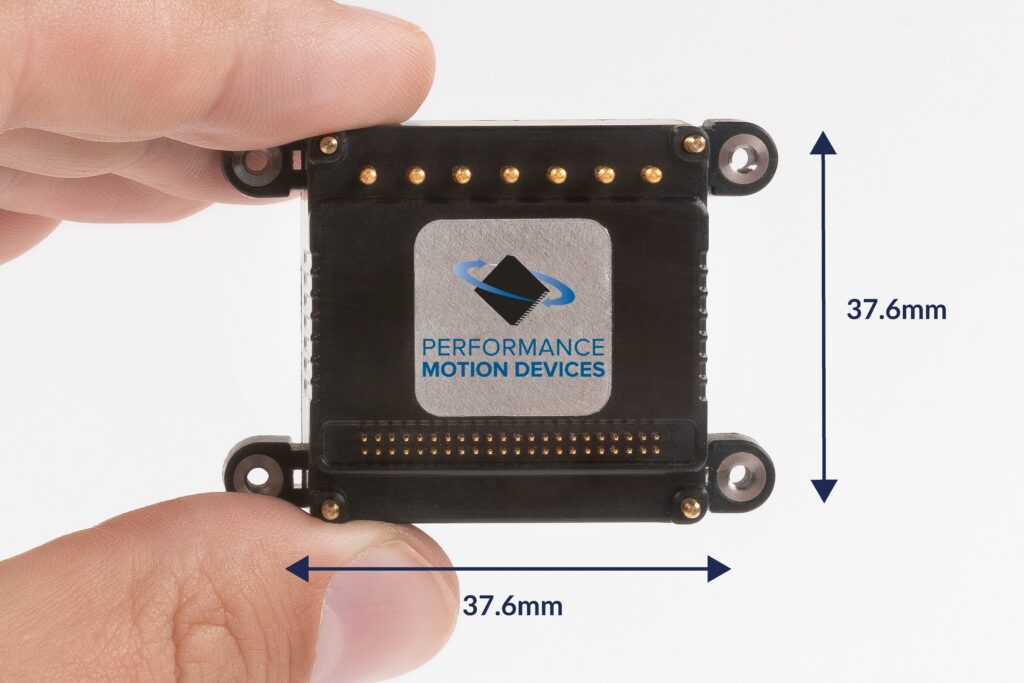

The ION/CME N-series motion-control drive imparts the Dusty design with the management wanted for exact automated operation. | Supply: Efficiency Movement Units

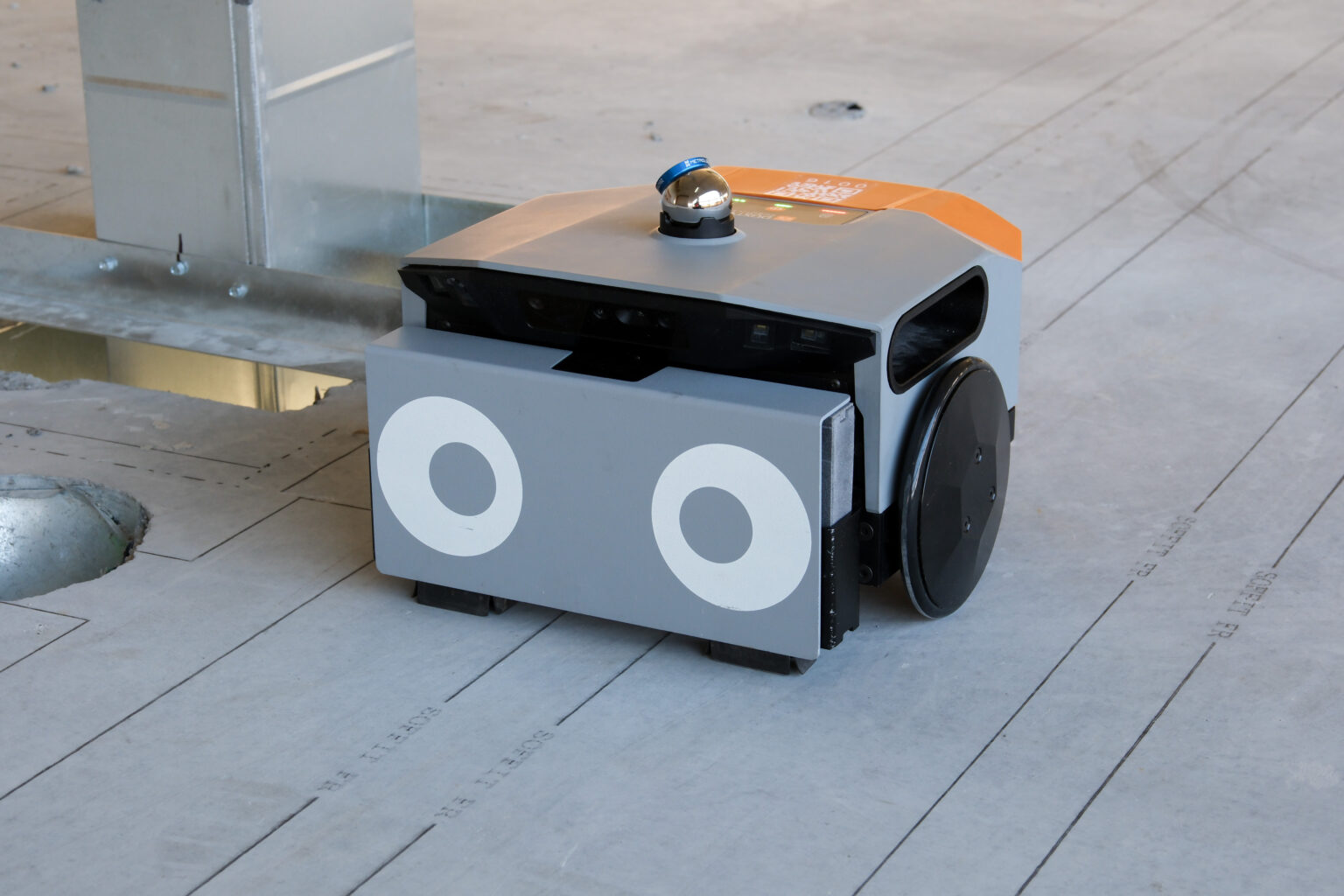

Mountain View, Calif.-based startup Dusty Robotics has designed an autonomous cell robotic (AMR) known as the FieldPrinter 2 to independently map and mark 3D constructing designs onto 2D building flooring with 0.0625-in. accuracy. With it, building groups now not need to always examine their laptops, iPads, and paper plans to know what have to be constructed and the place.
Core to the AMR’s operate are two off-the-shelf movement management parts from Efficiency Movement Units (PMD). The ION/CME N-series drives present management and energy for the AMR’s two entrance wheels, and extra particularly, the 2 brushless DC electrical motors (BLDCs) driving the wheels. The AMR’s rear wheel has no energetic drive.
The controller drives place the robotic, together with a set of onboard sensors that present exact location data, together with trackers, encoders, and inertial measurement unit gyroscopes.
“We would like steady movement between all of the objects that we print,” stated Ryan Dimick, controls engineer at Dusty Robotics. The system should enable for fixed profile adjustments because the robotic switches between navigating and printing.”
Actually, the brand new FieldPrinter 2 AMR improves on a earlier iteration with the assistance of the PMD controller-drives. The primary iteration’s use of one other vendor’s movement controllers created challenges for the startup‘s builders, together with an lack of ability to grasp and rectify errors with out workarounds. The brand new controller-drive resolution addresses these points and suits into the prevailing platform.
Extra particularly, the PCB-mountable single-axis controller imparts high-performance movement management, community connectivity, and amplification for an all-in-one drive with a built-in processor. So, the robotic can obtain and run code. Plus, the controller-drives give Dusty Robotics visibility and customizability.
“After we bumped into a difficulty, it was all the time one thing we may repair,” Dimick stated. “We overcame any latencies we had prior to now and actually set our personal timing traits for the motors and motor management.”
For instance, Dusty needed to have the ability to modify the management loop and field-oriented management loop parameters, he added.
“[Dimick] is continually pulling knowledge into spreadsheets, graphing it, and taking a look at all of the inputs and outputs to the motor controller — and understanding what small tweaks we’d like,” Thompson defined. “That means to convey graphs into alignment together with his expectations — that was an enormous problem earlier than.”
Dimick added, “We’re engaged on a millisecond-level time scale. Getting data in a short time is necessary for all of the tuning and high-level controls, and we weren’t capable of attain that previous to PMD.”
PMD’s ION/CME N-series movement management drive is instrumental to the robotic’s place accuracy. PMD’s N-series drives additionally give the engineers entry to inside management parameters to customise and troubleshoot the design. | Supply: Dusty Robotics
PMD helps Dusty resolve edge instances
Dusty Robotics carefully collaborated with the controller-drive provider to resolve challenges. “Anytime I used to be integrating the controller into the product and had questions, they have been fast to leap on a name, and so they even launched a customized debug model for me to briefly use for diagnosing a difficulty,” stated Dimick.
This collaboration additionally knowledgeable the AMR producer’s industrial-communication alternative.
The controller drive helps communication by way of Ethernet, CAN, RS-232, RS-485, and serial peripheral interface. Dusty needed sure communications coming in a barely later model of the controller-drive.
“So, we waited, and I believe we have been one of many first to essentially use it,” he recalled. “Then we helped [the supplier] debug the firmware, and so they rapidly returned new variations for us to make use of.”

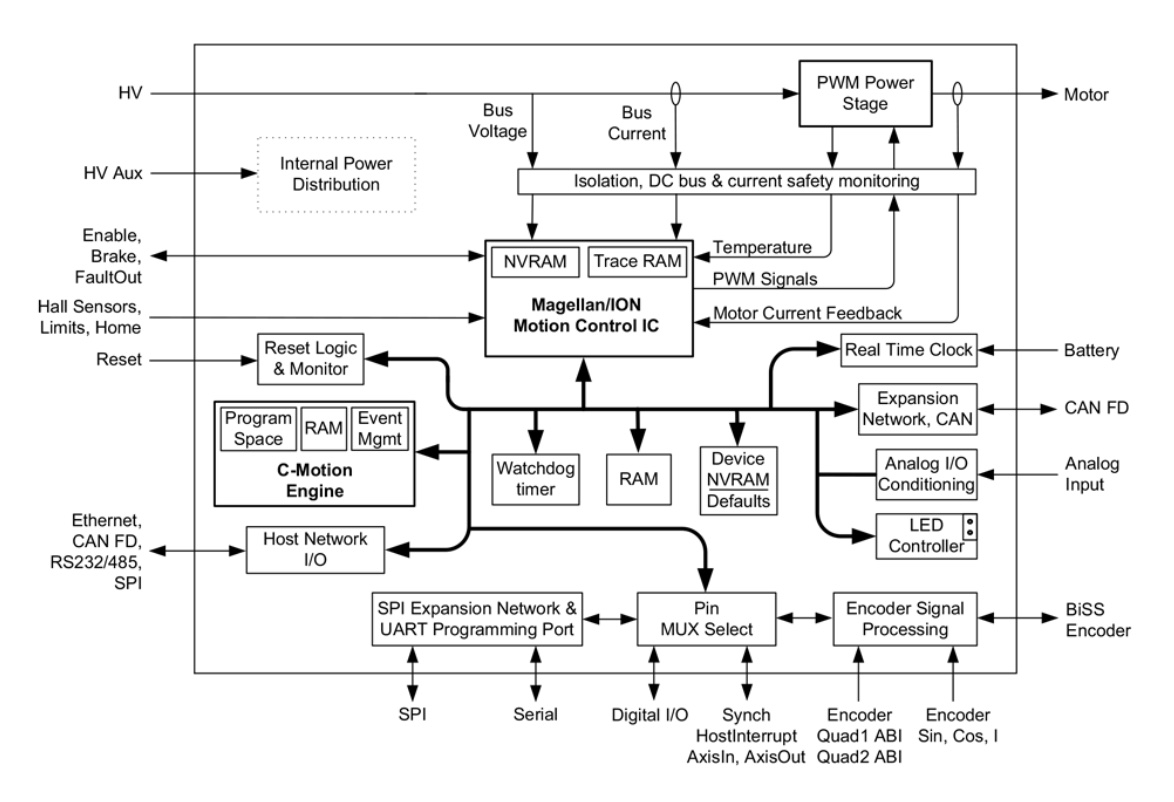

A black diagram of the PMD N-Collection ION. | Supply: Efficiency Movement Units
The Dusty FieldPrinter 2 has a laser tracker that repeatedly reviews AMR place — however usually the tracker doesn’t have a view of the robotic, so operation is blind. However the controller-drive (along with the robotic’s sensors) retains the AMR on monitor.
“When the robotic is printing inside a blind spot, not seen to the tracker, it’s counting on the inertial measurement unit and encoders which can be coming by way of the controller. It’s counting on all the opposite sensors for 5, 10, 15 seconds of steady printing,” Thompson defined. “Then, when it comes out of the blind spot, it tells the tracker precisely the place it’s. We have to give that tracker the accuracy so it may possibly in a short time and exactly purchase the sign.”
Right here, sub-millisecond timing precision helps the AMR deal with blind spots so frequent at cluttered jobsites. “That data and clean predictable movement lets the AMR precisely estimate its location and proceed printing with out line-of-sight to the laser tracker,” stated Dimick. This blind-spot printing is the largest enchancment of the brand new AMR model.
The controller-drive may also apply an digital brake to the AMR’s motors. A little bit of Dusty’s personal software program, operating on one of many controller’s chips, serves as a watchdog. If it loses communication to the robotic, it powers down the motors.
As the corporate title implies, Dusty Robotics’ system should function in soiled environments and in all types of climate — within the Arizona solar, in addition to the 14th ground of a Chicago constructing beneath building when it’s -20° F — and with unknown obstacles and spotty Web connectivity.
Not like competing options that go away delicate electronics uncovered, PMD stated the controller-drive used within the FieldPrinter 2 comes commonplace with an enclosed package deal to guard inside parts. Future iterations of the robotic may see larger ranges of integration.
“PMD offers a pathway for us,” Thompson stated. “They supply the controllers themselves and may open their controllers and provides us entry to the impartial components to allow us to create a extremely built-in resolution.”
“It’s one thing that we haven’t actually pursued however lets us protect the funding that the engineers have made … and nonetheless make the system sooner and lighter than it’s immediately,” he added.
